Kennametal

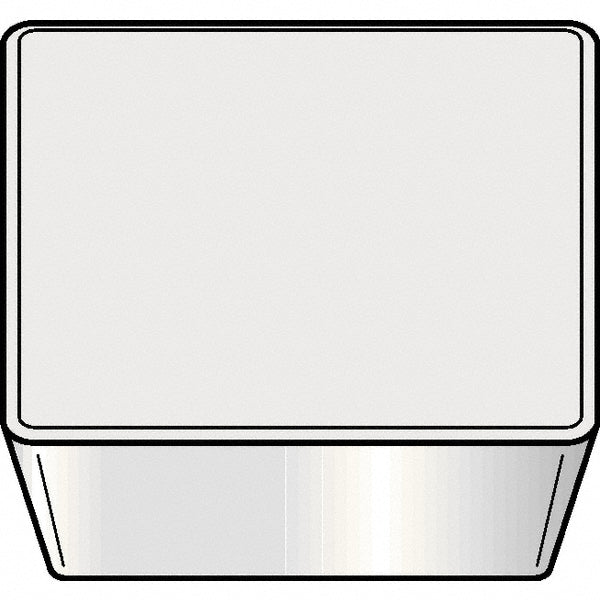

SPGN120412 Carbide Insert, Grade KCU10, TiAlN - Kennametal 4050768
MFR# 4050768ISO/ANSI# SPG433Series KENDEX
$30.02List $36.65
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeKCU10
MaterialCarbide
CoatingTiAlN
Description
The Kennametal 4050768 is a SPGN120412 carbide indexable insert, grade KCU10, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Chip breakerFlat Top
Clearance codeP
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Cutting edge styleHoned
Full radiusNo
Included angle90
Industry standard numberSPG433
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp
Insert length in1/2
Insert materialCarbide
Insert shapeSquare
Insert size code433
Insert styleSPG
Insert thickness in3/16
Iso codeSPGN120412
Length range0.5000 - 0.6000
Manufacturers catalog number4050768
Manufacturer gradeKCU10
Material gradeC3; C4
Maximum depth of cut0.1665
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle0
Relief angle11
StandardsANSI; ISO
Tolerance codeG
Width in1/2
Wiper edgeNo
