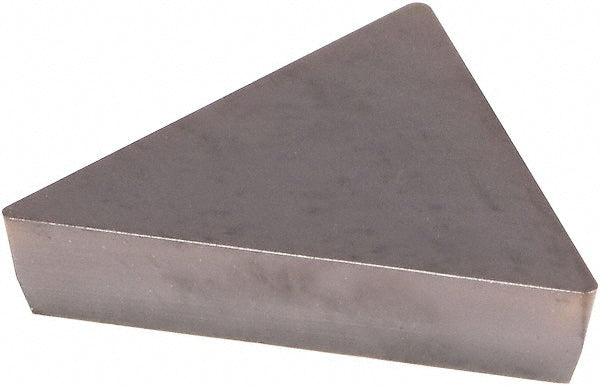

TPGN160304 Carbide Insert, Grade KCU10, TiAlN - Kennametal 4050774

Kennametal

TPGN160304 Carbide Insert, Grade KCU10, TiAlN - Kennametal 4050774

MFR# 4050774ISO/ANSI# TPG321Series KENDEX

$27.73List $33.85 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeTriangle
GradeKCU10
MaterialCarbide
CoatingTiAlN

Description

The Kennametal 4050774 is a TPGN160304 carbide indexable insert, grade KCU10, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Chip breakerFlat Top
Clearance codeP
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Included angle60
Industry standard numberTPG321
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp
Insert length0.6495
Insert materialCarbide
Insert shapeTriangle
Insert size code321
Insert styleTPG
Insert thickness in1/8
Iso codeTPGN160304
Length range0.6000 - 0.6500
Manufacturers catalog number4050774
Manufacturer gradeKCU10
Material gradeC3; C4
Maximum depth of cut0.2163
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle0
Relief angle11
StandardsANSI; ISO
Tolerance codeG
Width0.6495
Wiper edgeNo
