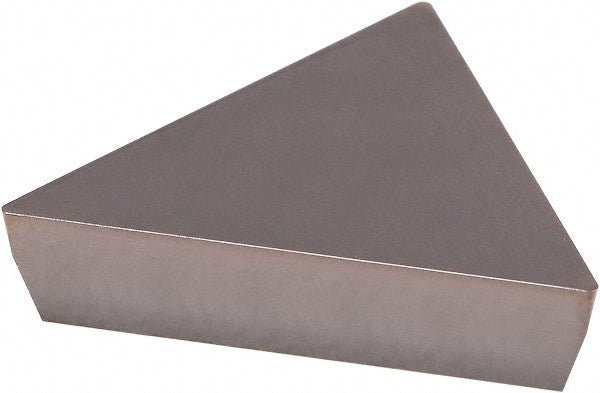

TPGN220404 Carbide Insert, Grade KCU10, TiAlN - Kennametal 4050778

Kennametal

TPGN220404 Carbide Insert, Grade KCU10, TiAlN - Kennametal 4050778

MFR# 4050778ISO/ANSI# TPG220404Series KENDEX

$44.03List $52.81 Save 16%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 5 — minimum order 5

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeT - Triangle
GradeKCU10
MaterialCarbide
CoatingTiAlN

Description

The Kennametal 4050778 is a TPGN220404 carbide indexable insert, grade KCU10, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi insert codeTPG431
Ansi size code431
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeP
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & No
Included angle60
Industry standard numberTPG431
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp
Insert length0.8661
Insert materialCarbide
Insert shapeT - Triangle
Insert size code431
Insert styleTPG
Insert thickness in3/16
Iso codeTPGN220404
Iso insert codeTPG220404
Iso size code220404
Length range0.7000 - 10.0000
Manufacturers catalog number4050778
Manufacturer gradeKCU10
Material gradeC3; C4
Maximum depth of cut0.2884
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle0
Relief angle11
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width0.8661
Wiper edgeNo
