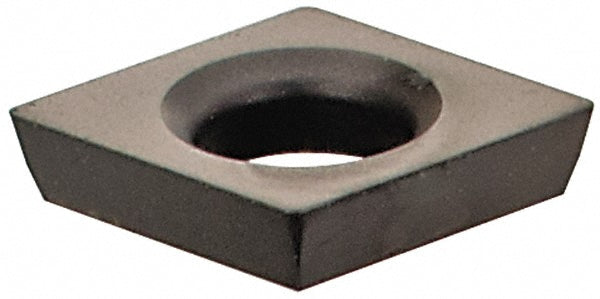

CDHBS4T002 Carbide Insert, Grade KCU10, TiAlN - Kennametal 4053323

Kennametal

CDHBS4T002 Carbide Insert, Grade KCU10, TiAlN - Kennametal 4053323

MFR# 4053323ISO/ANSI# CDHBS4T002Series Screw-On

$27.23List $33.24 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC5/32
ShapeDiamond
GradeKCU10
MaterialCarbide
CoatingTiAlN

Description

The Kennametal 4053323 is a CDHBS4T002 carbide indexable insert, grade KCU10, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

ChipbreakerFlat Top
Coating finishTiAlN
Coating processPVD
Corner radius in1/128
Hole diameter0.0840
Included angle80
Inscribed circle in5/32
Insert handNeutral
Insert holding methodScrew
Insert materialCarbide
Insert shapeDiamond
Insert size code120605
Insert styleCDHB
Iso codeCDHBS4T002
Length0.1587
Manufacturers catalog number4053323
Manufacturer gradeKCU10
Material gradeC3; C4
Maximum depth of cut0.0528
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle0
Relief angle15
StandardsANSI; ISO
Width0.1563
