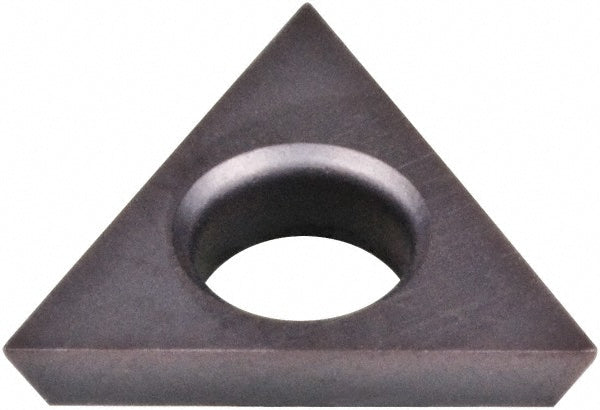

TDHB07T1202 Carbide Insert, Grade KCU10, TiAlN - Kennametal 4053336

Kennametal

TDHB07T1202 Carbide Insert, Grade KCU10, TiAlN - Kennametal 4053336

MFR# 4053336ISO/ANSI# TDHB07T1202Series Screw-On

$28.45List $34.12 Save 16%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 5 — minimum order 5

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeTriangle
GradeKCU10
MaterialCarbide
CoatingTiAlN

Description

The Kennametal 4053336 is a TDHB07T1202 carbide indexable insert, grade KCU10, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

ChipbreakerFlat Top
Coating finishTiAlN
Coating processPVD
Corner radius in1/128
Hole diameter0.0950
Included angle60
Inscribed circle0.1600
Insert handNeutral
Insert holding methodScrew
Insert materialCarbide
Insert shapeTriangle
Insert size code12807505
Insert styleTDHB
Iso codeTDHB07T1202
Length0.2772
Manufacturers catalog number4053336
Manufacturer gradeKCU10
Material gradeC3; C4
Maximum depth of cut0.0923
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle0
Relief angle15
StandardsANSI; ISO
Width0.2772
