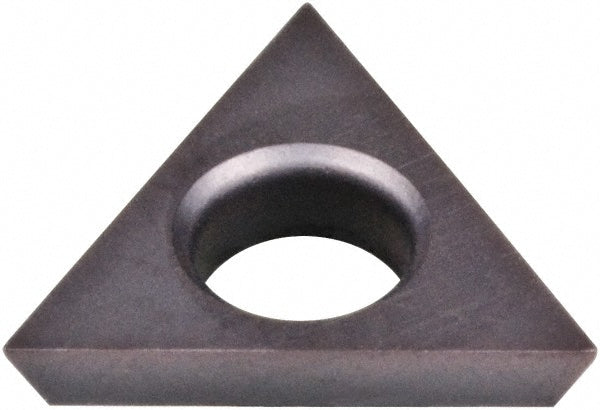

TDHB07T1204 Carbide Insert, Grade KCU10, TiAlN - Kennametal 4053337

Kennametal

TDHB07T1204 Carbide Insert, Grade KCU10, TiAlN - Kennametal 4053337

MFR# 4053337ISO/ANSI# TDHB07T1204Series Screw-On

$24.09List $29.41 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeTriangle
GradeKCU10
MaterialCarbide
CoatingTiAlN

Description

The Kennametal 4053337 is a TDHB07T1204 carbide indexable insert, grade KCU10, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

ChipbreakerFlat Top
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Hole diameter0.0950
Included angle60
Inscribed circle0.1600
Insert handNeutral
Insert holding methodScrew
Insert materialCarbide
Insert shapeTriangle
Insert size code1280751
Insert styleTDHB
Iso codeTDHB07T1204
Length0.2772
Manufacturers catalog number4053337
Manufacturer gradeKCU10
Material gradeC3; C4
Maximum depth of cut0.0923
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle0
Relief angle15
StandardsANSI; ISO
Width0.2772
