Kennametal

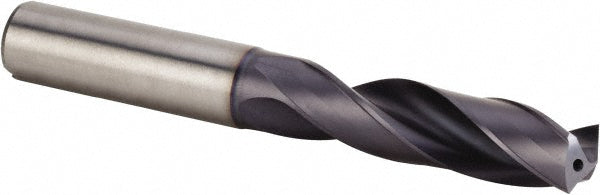

17/32" Solid Carbide Stub Drill Bit, TiAlN, 140° point - Kennametal 4054513
MFR# 4054513Series B976A
$292.83List $375.56
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size17/32
Flutes2
CoatingTiAlN
Description
The Kennametal 4054513 is a 17/32" Solid Carbide Stub drill bit with a TiAlN finish, 140° point. Series B976A.
Specifications
Coating finishTiAlN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.0003 to +0.0010 in; +0.007 to +0.025 mm
Drill bit size in17/32
Drill bit size range0.5000 to 0.6000
Drill length typeStub
Drill point angle140
Drill point length0.0917
Flute by diameter ratio3xD
Flute length2.3622
Flute typeRegular Spiral
Maximum drilling depth1.6929
Number of flutes2
Overall length4.2126
Point typeStandard
Shank diameter0.5512
Shank length1.7717
Shank typeStraight
Specification designationDIN
Specification numberDIN 6537K
Spiral typeRegular
Tool materialSolid Carbide
Web configurationTapered
