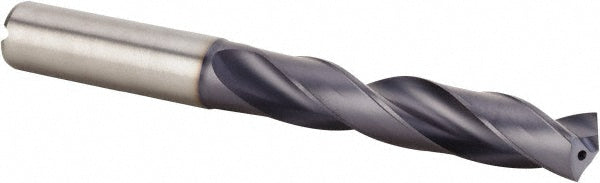

17/32" Solid Carbide Drill Bit, TiAlN, 140° point - Kennametal 4054528

Kennametal

17/32" Solid Carbide Drill Bit, TiAlN, 140° point - Kennametal 4054528

MFR# 4054528

$363.98List $466.82 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size17/32
Flutes2
CoatingTiAlN

Description

The Kennametal 4054528 is a 17/32" Solid Carbide drill bit with a TiAlN finish, 140° point. Suited for steel, stainless steel, cast iron, aluminum & non-ferrous.

Specifications

Coating finishTiAlN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance0.007 to 0.025 mm
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size in17/32
Drill bit size range0.5000 - 0.6500
Drill point angle degrees140
Flute by diameter ratio5xD
Flute length3.0315
Flute typeRegular Spiral
Material gradeKC7315
Maximum drilling depth2.3622
Number of flutes2
Overall length4.8819
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous
Shank diameter0.5512
Shank length1.7717
Shank typeStraight
Specification designationDIN
Specification numberDIN 6537K
Spiral typeRegular
Web configurationTapered
