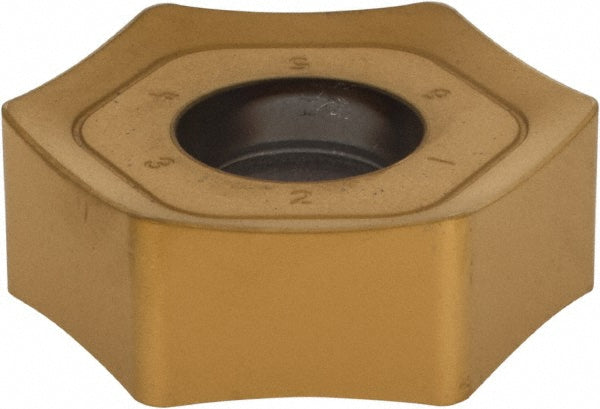

HNPJ130720ANSNHD Solid Carbide Insert, Grade KC725M, TiAlN - Kennametal 4057830
MFR# 4057830ISO/ANSI# HNPJ130720ANSNHDCat# HNPJ130720ANSNHDSeries HNPJ
$45.89List $56.02
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC7/8
ShapeHexagon
GradeKC725M
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 4057830 is a HNPJ130720ANSNHD solid carbide indexable insert, grade KC725M, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeHNPJ755ANSNHD
Chip breakerHD
Coating finishTiAlN
Coating processPVD
Corner radius in5/64
Cutter series compatibilityDodeka
Cutting edge styleHoned T-Land
Hole diameter0.3150
Included angle degree120
Inscribed circle in7/8
Inscribed circle range0.7000 to 1.0000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeHexagon
Insert size7
Insert size code755
Insert styleHNPJ
Iso codeHNPJ130720ANSNHD
Length in7/8
Length range0.7000 to 0.9000
Manufacturers catalog numberHNPJ130720ANSNHD
Manufacturer gradeKC725M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC5; C6; C7
Maximum depth of cut0.5052
Multi use toolYes
Number of cutting edges12
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle15
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.2923
Thickness range0.2500 to 0.3500
Width in7/8
