Kennametal

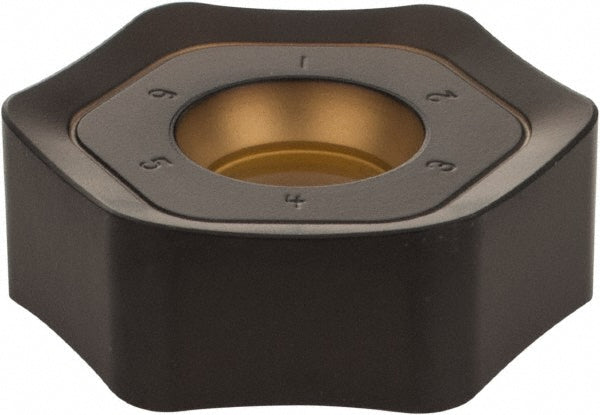

HNPJ130735ANSNHD Solid Carbide Insert, Grade KCPK30, TiN - Kennametal 4057854
MFR# 4057854ISO/ANSI# HNPJ130735ANSNHDCat# HNPJ130735ANSNHDSeries HNPJ
$57.49List $68.95
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 5 — minimum order 5
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC7/8
ShapeHexagon
GradeKCPK30
MaterialSolid Carbide
CoatingTiN
Description
The Kennametal 4057854 is a HNPJ130735ANSNHD solid carbide indexable insert, grade KCPK30, TiN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium.
Specifications
Ansi codeHNPJ759ANSNHD
Chip breakerHD
Coating finishTiN
Coating processCVD
Corner radius0.1378
Cutter series compatibilityDodeka
Cutting edge styleHoned T-Land
Hole diameter0.3150
Included angle degree120
Inscribed circle in7/8
Inscribed circle range0.7000 to 1.0000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeHexagon
Insert size7
Insert size code759
Insert styleHNPJ
Iso codeHNPJ130735ANSNHD
Length in7/8
Length range0.7000 to 0.9000
Manufacturers catalog numberHNPJ130735ANSNHD
Manufacturer gradeKCPK30
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeC1; C5; C6
Maximum depth of cut0.2537
Multi use toolYes
Number of cutting edges12
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
RakePositive
Rake angle15
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.2887
Thickness range0.2500 to 0.3500
Width in7/8
