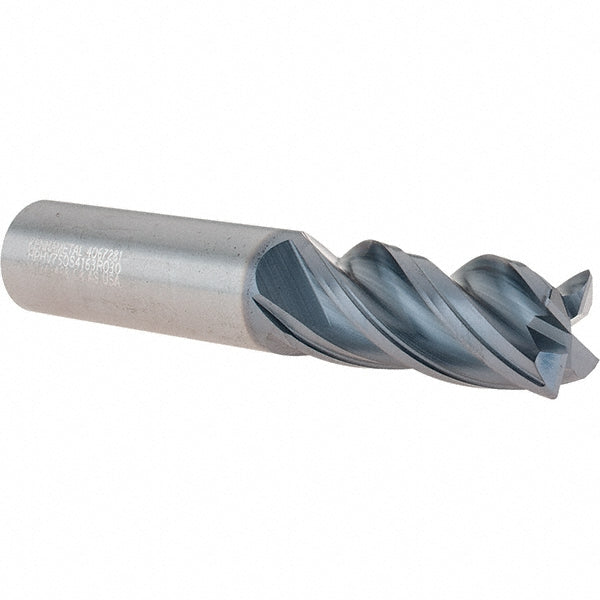

3/4in" 4-Flute Solid Carbide Corner Radius End Mill, AlTiN - Kennametal 4067281

Kennametal

3/4in" 4-Flute Solid Carbide Corner Radius End Mill, AlTiN - Kennametal 4067281

MFR# 4067281Cat# HPHV750S4163R030Series HPHV

$508.13List $651.70 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/4in
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The Kennametal 4067281 is a 3/4in 4-flute Solid Carbide (KCPM15) corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, non-ferrous metal, hard material. 1-5/8in length of cut, 4in overall length. Series HPHV.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Corner radius0.0300
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withToolholders
Helix styleMedium
Length of cut in1-5/8in
Length typeStandard
Manufacturers catalog numberHPHV750S4163R030
Material applicationSteel; Stainless Steel; Cast Iron; Hard Material
Material gradeKCPM15
Material removal typeRoughing & Finishing
Mill diameter in3/4in
Mill diameter tolerance+0.0000/-0.0020 in
Number of flutes4
Overall length in4in
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Non-Ferrous Metal; Hard Material
Reach length in1-5/8
Shank diameter in3/4in
Shank diameter toleranceh6
Shank typeWeldon Flat
Single or double endSingle
Variable helixNo
Variable indexYes
