Kennametal

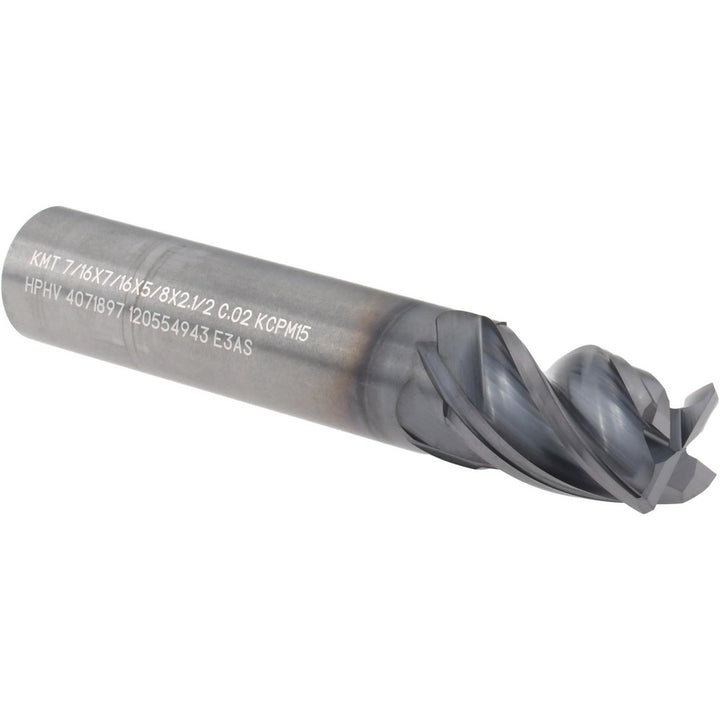

7/16" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, AlTiN - Kennametal 4071897
MFR# 4071897Cat# HPHV438S4063CHSeries HPHV
$177.15List $223.25
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter7/16
Flutes4
MaterialSolid Carbide
CoatingAlTiN
Description
The Kennametal 4071897 is a 7/16 4-flute Solid Carbide (KCPM15) corner radius & corner chamfer end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, hard material. 5/8 length of cut, 2-1/2 overall length. Series HPHV.
Specifications
Additional informationShouldering; Slotting; Rampdown; Helical Interpolation; Drill Mill; Plunging & Recessing
CentercuttingYes
Chamfer angle45
Chamfer length0.0200
Chamfer width0.0200
ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeVariable
Helix styleMedium
Length of cut in5/8
Length typeRegular
Manufacturers catalog numberHPHV438S4063CH
Material gradeKCPM15
Material removal typeRoughing & Finishing
Mill diameter in7/16
Mill diameter tolerance+0.0000 to -0.0020 in
Number of flutes4
Overall length in2-1/2
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material
Reach length in5/8
Shank diameter in7/16
Shank diameter tolerance+0.00000 to -0.00043 in
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexYes
