Kennametal

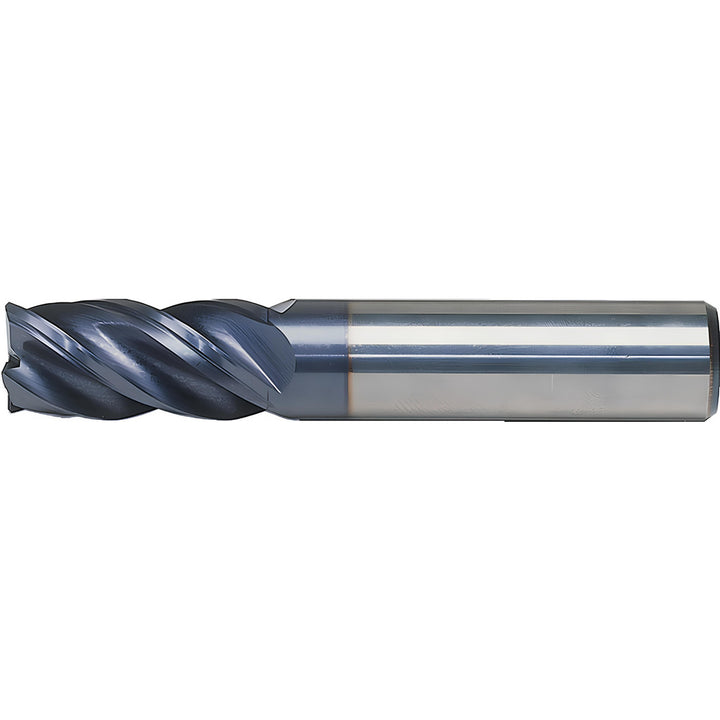

1/2" 4-Flute Solid Carbide Corner Radius End Mill, AlTiN - Kennametal 4071925

MFR# 4071925Series HPHV

$225.36List $289.03 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes4

MaterialSolid Carbide

CoatingAlTiN

Description

The Kennametal 4071925 is a 1/2 4-flute Solid Carbide (Submicron) corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, hard material. 1-5/8 length of cut, 4 overall length. Series HPHV.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Corner radius0.0600

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachYes

Flute directionRight Hand

Flute typeSpiral

For use withEM-CV Form AD; EM-CV Form AD; EM-CV Form AD; EM IN-HSK Form A; EM IN-HSK Form A

Helix styleHigh

Length of cut in1-5/8

Length typeLong

Material applicationSteel; Stainless Steel; Cast Iron; Hard Material

Material gradeSubmicron

Material removal typeRoughing & Finishing

Mill diameter in1/2

Mill diameter tolerance+0.000000/-0.002000 in

Number of flutes4

Overall length in4

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material

Reach length in1-5/8

Shank diameter in1/2

Shank diameter tolerance+0.00000/-0.00043 in

Shank typeWeldon Flat

Single or double endSingle

Variable helixNo

Variable indexNo
