Kennametal

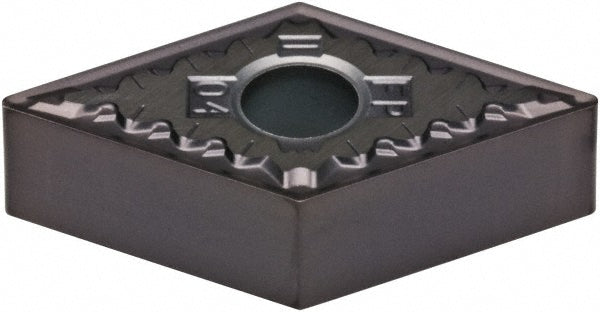

DNMG110408FP Carbide Insert, Grade KCP10, TiCN - Kennametal 4078704
MFR# 4078704ISO/ANSI# DNMG332FPSeries KENLOC
$27.70List $33.81
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeKCP10
MaterialCarbide
CoatingTiCN
Description
The Kennametal 4078704 is a DNMG110408FP carbide indexable insert, grade KCP10, TiCN coated. Suited for steel, cast iron.
Specifications
Chip breakerFP
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1500
Included angle55
Industry standard numberDNMG332FP
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.9156
Insert materialCarbide
Insert shapeDiamond
Insert size code332
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG110408FP
Length range0.7000 - 10.0000
Manufacturers catalog number4078704
Manufacturer gradeKCP10
Material gradeC3; C7
Maximum depth of cut0.3049
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle15
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
