Kennametal
WNMG080408FP Carbide Insert, Grade KCP10, TiCN - Kennametal 4078710
MFR# 4078710ISO/ANSI# WNMG432FPSeries KENLOC
$25.82List $31.52
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
GradeKCP10
MaterialCarbide
CoatingTiCN
Description

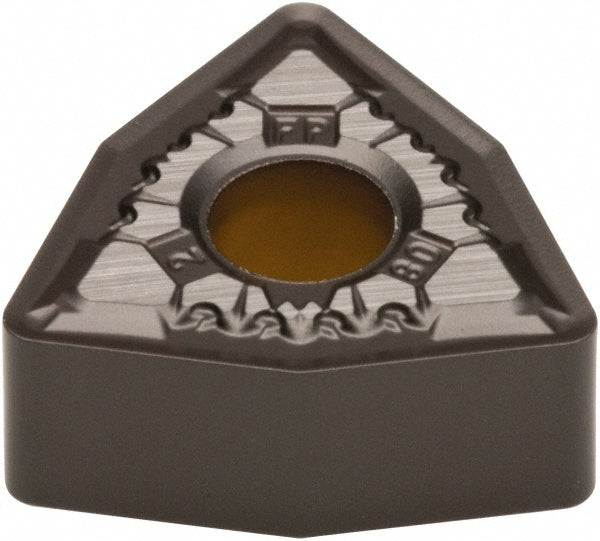

The Kennametal 4078710 is a WNMG080408FP carbide indexable insert, grade KCP10, TiCN coated. Suited for steel, cast iron.
Specifications
Chip breakerFP
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2031
Included angle80degree
Industry standard numberWNMG432FP
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6840
Insert materialCarbide
Insert shapeTrigon
Insert size code432
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG080408FP
Length range0.6500 - 0.7000
Manufacturers catalog number4078710
Manufacturer gradeKCP10
Material gradeC3; C7
Maximum depth of cut0.2278
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle15
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width0.6840in
Wiper edgeNo
