Kennametal

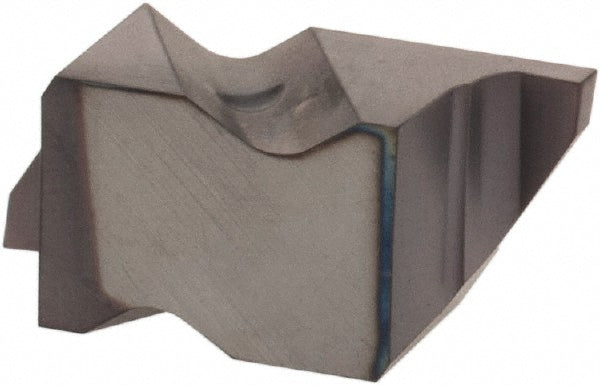

Carbide Insert, Grade KCU25, AlTiN - Kennametal 4109663
MFR# 4109663Series Top Notch
$41.07List $49.25
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 5 — minimum order 5
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU25
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 4109663 is a carbide indexable insert, grade KCU25, AlTiN coated.
Specifications
Coating finishAlTiN
Coating processPVD
Corner radius0.0035
Cutting height0.2190
Cutting width0.0311
Full radiusNo
Included angle degree55
Insert handRight Hand
Insert holding methodClamp
Insert materialCarbide
Insert size2031
Insert styleNG
Manufacturer gradeKCU25
Material gradeC2; C6
Maximum depth of cut0.0500
Maximum depth of cut range0.0000 to 0.0750
Measurement typeMetric
Msc manufacturer numberNG2031R/L
Multi use toolNo
Overall width0.151
