Kennametal

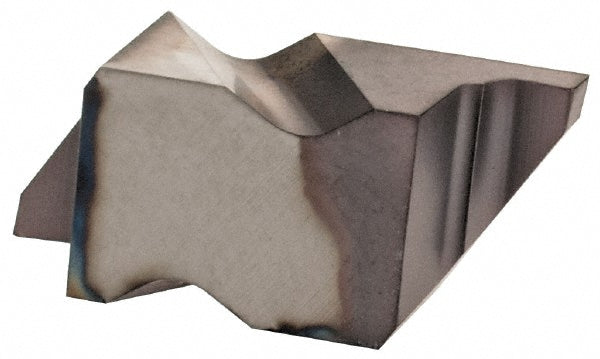

Carbide Insert, Grade KCU25, AlTiN - Kennametal 4109666
MFR# 4109666Series Top Notch
$34.78List $42.46
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU25
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 4109666 is a carbide indexable insert, grade KCU25, AlTiN coated.
Specifications
Coating finishAlTiN
Coating processPVD
Corner radius0.0035
Cutting height0.2190
Cutting width0.0409
Full radiusNo
Included angle degree55
Insert handRight Hand
Insert holding methodClamp
Insert materialCarbide
Insert size2041
Insert styleNG
Manufacturer gradeKCU25
Material gradeC2; C6
Maximum depth of cut0.0500
Maximum depth of cut range0.0000 to 0.0750
Measurement typeMetric
Msc manufacturer numberNG2041R/L
Multi use toolNo
Overall width0.151
