Kennametal

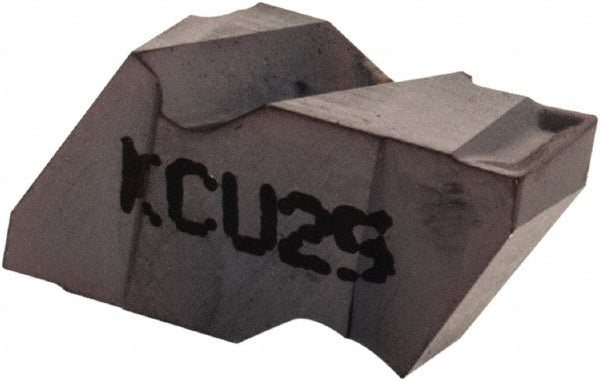

Carbide Insert, Grade KCU25, AlTiN - Kennametal 4109682
MFR# 4109682Series Top Notch
$34.78List $42.46
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU25
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 4109682 is a carbide indexable insert, grade KCU25, AlTiN coated.
Specifications
Chip breakerK
Coating finishAlTiN
Coating processPVD
Corner radius0.0075
Cutting height0.2190
Cutting width0.1252
Full radiusNo
Included angle degree55
Insert handLeft Hand
Insert holding methodClamp
Insert materialCarbide
Insert size2125
Insert styleNG
Manufacturer gradeKCU25
Material gradeC2; C6
Maximum depth of cut0.1098
Maximum depth of cut range0.1000 to 0.1500
Measurement typeMetric
Msc manufacturer numberNG2125R/LK
Multi use toolNo
Overall width0.151
