Kennametal
Carbide Insert, Grade KCU25, AlTiN - Kennametal 4109702
MFR# 4109702Series Top Notch
$35.63List $43.49
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU25
MaterialCarbide
CoatingAlTiN
Description

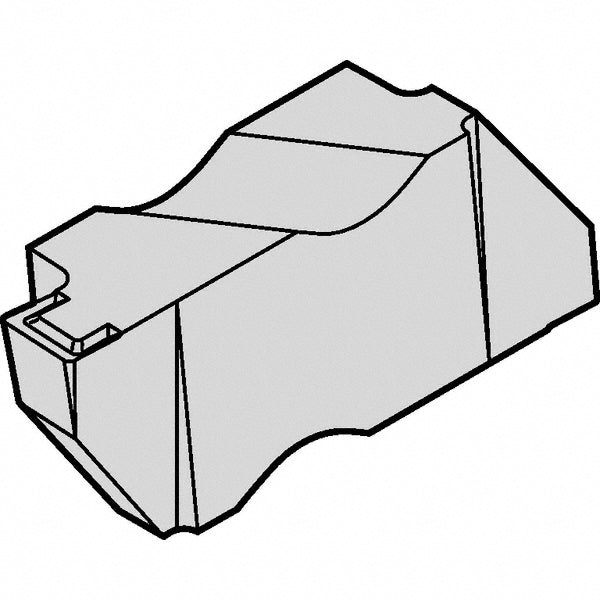

The Kennametal 4109702 is a carbide indexable insert, grade KCU25, AlTiN coated.
Specifications
Chip breakerK
Coating finishAlTiN
Coating processPVD
Corner radius0.0075
Cutting height0.3441
Cutting width0.0591
Full radiusNo
Included angle degree55
Insert handLeft Hand
Insert holding methodClamp
Insert materialCarbide
Insert size3M150
Insert styleNG
Manufacturer gradeKCU25
Material gradeC2; C6
Maximum depth of cut0.0940
Maximum depth of cut range0.0750 to 0.1000
Measurement typeMetric
Multi use toolNo
Overall width0.196
