Kennametal
Solid Carbide Insert, Grade KCU25, AlTiN - Kennametal 4109790
MFR# 4109790Series Top Notch
$35.63List $43.49
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU25
MaterialSolid Carbide
CoatingAlTiN
Description

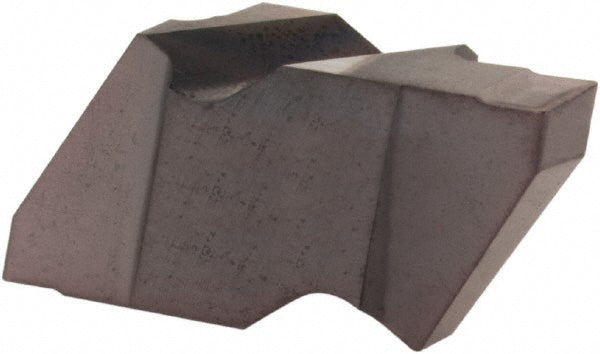

The Kennametal 4109790 is a solid carbide indexable insert, grade KCU25, AlTiN coated.
Specifications
Coating finishAlTiN
Coating processPVD
Corner radius0.0075
Cutting height0.3440
Cutting width0.0941
Full radiusNo
Included angle degree55
Insert handLeft Hand
Insert materialSolid Carbide
Insert seat size3
Insert size3094
Insert styleNG
Lead angle0
Manufacturer gradeKCU25
Maximum depth of cut0.1500
Maximum depth of cut range0.1500 to 0.2000
Msc manufacturer numberNG3094R/L
Multi use toolNo
RakeNeutral
Rake angle0.00
Single or double endDouble
