Kennametal

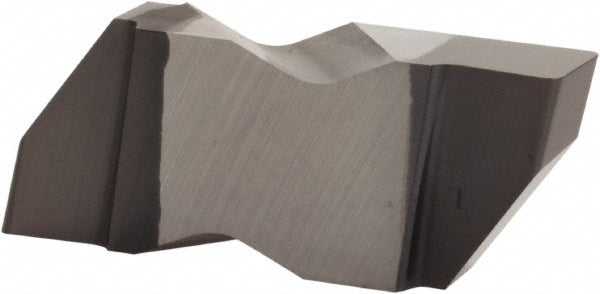

Carbide Insert, Grade KCU25, AlTiN - Kennametal 4109836
MFR# 4109836Series Top Notch
$42.07List $50.45
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 5 — minimum order 5
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU25
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 4109836 is a carbide indexable insert, grade KCU25, AlTiN coated.
Specifications
Coating finishAlTiN
Coating processPVD
Corner radius0.0225
Cutting height0.3440
Cutting width0.1890
Full radiusNo
Included angle degree55
Insert handRight Hand
Insert materialCarbide
Insert size3189
Insert styleNG
Lead angle0
Manufacturer gradeKCU25
Maximum depth of cut0.1500
Maximum depth of cut range0.1500 to 0.2000
Measurement typeDecimal Inch
Msc manufacturer numberNG3189R/L
Multi use toolNo
RakeNeutral
Rake angle0
