Kennametal

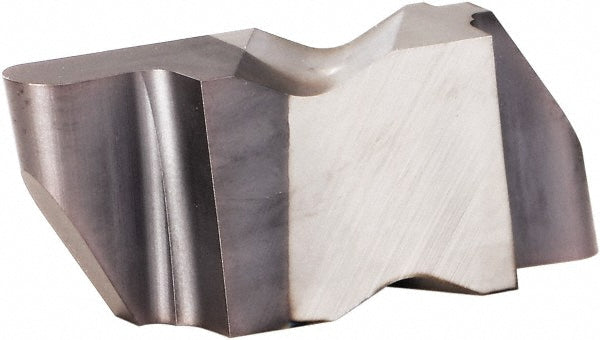

Carbide Insert, Grade KCU25, AlTiN - Kennametal 4109891
MFR# 4109891Series Top Notch
$40.25List $48.28
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 5 — minimum order 5
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU25
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 4109891 is a carbide indexable insert, grade KCU25, AlTiN coated.
Specifications
Coating finishAlTiN
Coating processPVD
Corner radius0.0626
Cutting height0.2190
Cutting width0.1252
Full radiusYes
Included angle degree55
Insert handLeft Hand
Insert holding methodClamp
Insert materialCarbide
Insert size2062
Insert styleNR
Manufacturer gradeKCU25
Material gradeC2; C6
Maximum depth of cut0.1098
Maximum depth of cut range0.1000 to 0.1500
Measurement typeMetric
Multi use toolNo
Overall length0.5083
Overall width0.151
