Kennametal
Carbide Insert, Grade KCU25, AlTiN - Kennametal 4109928
MFR# 4109928Series Top Notch
$56.87List $69.42
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU25
MaterialCarbide
CoatingAlTiN
Description

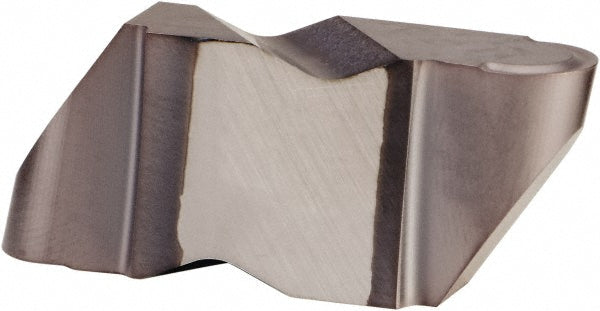

The Kennametal 4109928 is a carbide indexable insert, grade KCU25, AlTiN coated.
Specifications
Chip breakerK
Coating finishAlTiN
Coating processPVD
Corner radius0.1252
Cutting height0.4530
Cutting width0.2500
Full radiusYes
Included angle degree55
Insert handRight Hand
Insert holding methodClamp
Insert materialCarbide
Insert seat size4
Insert size4125
Insert styleNR
Manufacturer gradeKCU25
Material gradeC2; C6
Maximum depth of cut0.2500
Maximum depth of cut range0.2000 to 0.3000
Measurement typeMetric
Msc manufacturer numberNR4125R/LK
Multi use toolNo
Overall length1.1067
Overall width0.256
