Kennametal

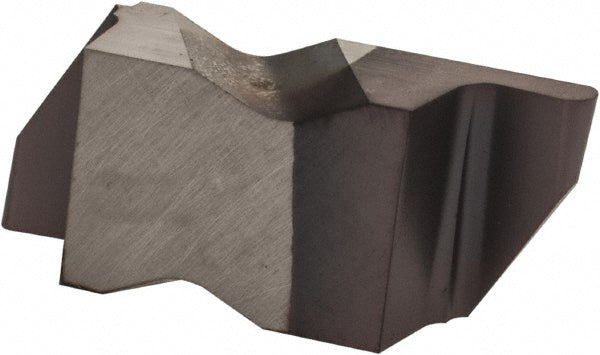

Carbide Insert, Grade KCU25, AlTiN - Kennametal 4109930
MFR# 4109930Series Top Notch
$38.06List $46.46
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU25
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 4109930 is a carbide indexable insert, grade KCU25, AlTiN coated.
Specifications
Coating finishAlTiN
Coating processPVD
Corner radius0.0311
Cutting height0.3440
Cutting width0.0622
Full radiusYes
Included angle degree55
Insert handRight Hand
Insert holding methodClamp
Insert materialCarbide
Insert size3031
Insert styleNRD
Manufacturer gradeKCU25
Material gradeC2; C6
Maximum depth of cut0.1252
Maximum depth of cut range0.1000 to 0.1500
Measurement typeMetric
Msc manufacturer numberNRD3031R/L
Multi use toolNo
Overall length0.8882
Overall width0.196
