Kennametal

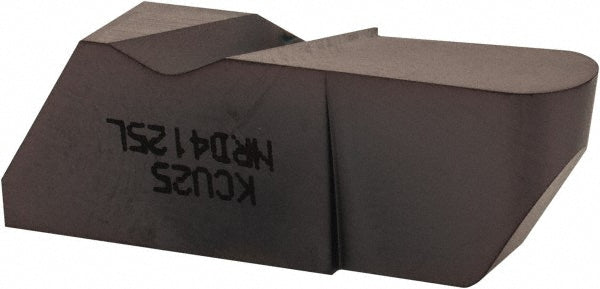

Carbide Insert, Grade KCU25, AlTiN - Kennametal 4109936
MFR# 4109936Series Top Notch
$38.71List $47.26
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU25
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 4109936 is a carbide indexable insert, grade KCU25, AlTiN coated.
Specifications
Coating finishAlTiN
Coating processPVD
Corner radius0.1252
Cutting height0.4530
Cutting width0.2500
Full radiusYes
Included angle degree55
Insert handLeft Hand
Insert holding methodClamp
Insert materialCarbide
Insert seat size4
Insert size4125
Insert styleNRD
Manufacturer gradeKCU25
Material gradeC2; C6
Maximum depth of cut0.5000
Maximum depth of cut range0.3000 to 1.0000
Measurement typeMetric
Multi use toolNo
Overall length1.3633
Overall width0.256
