Kennametal
Carbide Insert, Grade KCU25, AlTiN - Kennametal 4109944
MFR# 4109944Series Top Notch
$33.67List $41.10
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU25
MaterialCarbide
CoatingAlTiN
Description

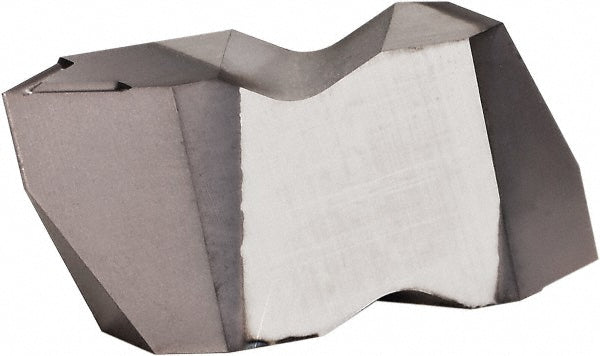

The Kennametal 4109944 is a carbide indexable insert, grade KCU25, AlTiN coated.
Specifications
ChipbreakerK
Coating finishAlTiN
Coating processPVD
Corner radius0.0067
External pitch1.25-4.00 mm; 6-20 TPI
Finish coatingAlTiN
Included angle60
Insert handLeft Hand
Insert materialCarbide
Insert size3
Insert styleNT
Internal pitch2.00 to 5.00 mm; 5 to 12 TPI
Manufacturer gradeKCU25
Thread standardPartial Profile 60 Degree
Thread typeInternal; External
Tip to top of insert0.0980
