Kennametal
Carbide Insert, Grade KCU25, AlTiN - Kennametal 4109948
MFR# 4109948Series Top Notch
$48.47List $58.14
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU25
MaterialCarbide
CoatingAlTiN
Description

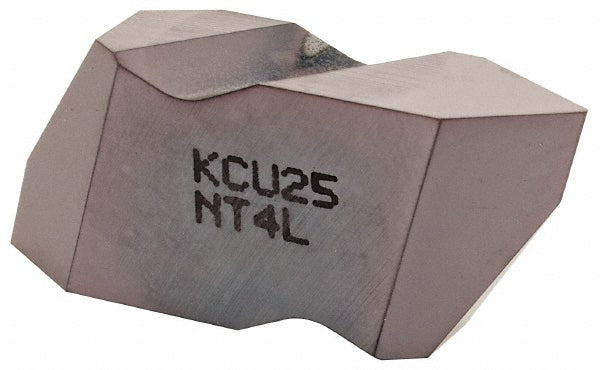

The Kennametal 4109948 is a carbide indexable insert, grade KCU25, AlTiN coated.
Specifications
Coating finishAlTiN
Coating processPVD
Corner radius0.0065
External pitch1.25-6.25 mm; 4-20 TPI
Finish coatingAlTiN
Included angle60
Insert handLeft Hand
Insert materialCarbide
Insert size4
Insert styleNT
Internal pitch2.00 to 6.25 mm; 4 to 12 TPI
Manufacturer gradeKCU25
Thickness0.255
Thread standardPartial Profile 60 Degree
Thread typeInternal; External
