Kennametal

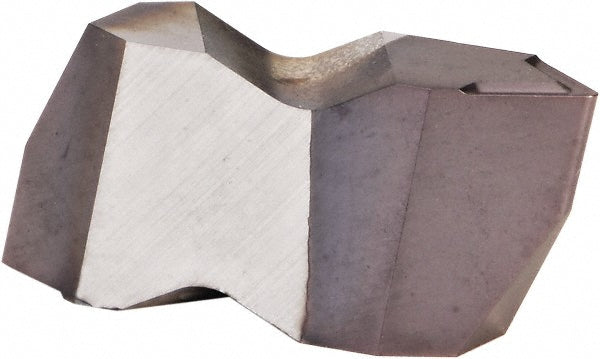

Carbide Insert, Grade KCU25, AlTiN - Kennametal 4109952
MFR# 4109952Series Top Notch
$50.35List $60.38
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 5 — minimum order 5
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU25
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 4109952 is a carbide indexable insert, grade KCU25, AlTiN coated.
Specifications
ChipbreakerK
Coating finishAlTiN
Coating processPVD
Corner radius0.0134
External pitch2.50-5.50 mm; 4.5-11 TPI
Finish coatingAlTiN
Included angle60
Insert handRight Hand
Insert materialCarbide
Insert size4
Insert styleNT
Internal pitch4.00 to 5.50 mm; 4.5 to 6 TPI
Manufacturer gradeKCU25
Thickness0.255
Thread standardPartial Profile 60 Degree
Thread typeInternal; External
Tip to top of insert0.1280
