Kennametal

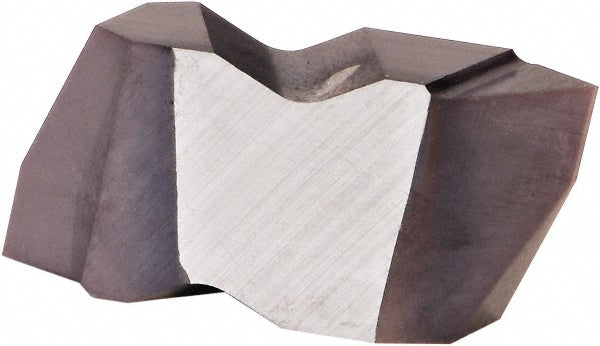

Carbide Insert, Grade KCU25, AlTiN - Kennametal 4109963
MFR# 4109963Series Top Notch
$30.66List $37.42
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU25
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 4109963 is a carbide indexable insert, grade KCU25, AlTiN coated.
Specifications
Coating finishAlTiN
Coating processPVD
Corner radius0.0040
External pitch0.70-3.00 mm; 8-36 TPI
Finish coatingAlTiN
Included angle60
Insert handRight Hand
Insert materialCarbide
Insert size2
Insert styleNTP
Internal pitch1.25 to 3.50 mm; 7 to 20 TPI
Manufacturer gradeKCU25
Thickness0.15
Thread standardPartial Profile 60 Degree
Thread typeInternal; External
