Kennametal
Carbide Insert, Grade KCU25, AlTiN - Kennametal 4114302
MFR# 4114302Series A4
$40.93List $49.09
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 10 — minimum order 10
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU25
MaterialCarbide
CoatingAlTiN
Description

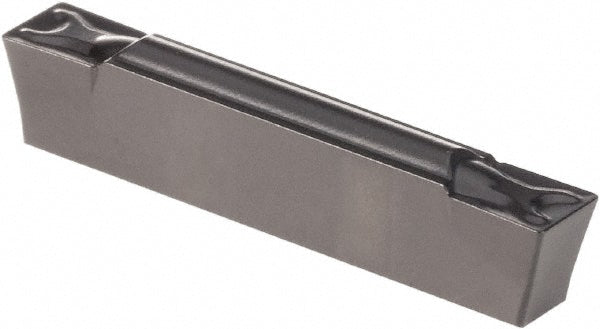

The Kennametal 4114302 is a carbide indexable insert, grade KCU25, AlTiN coated.
Specifications
Chip breakerGMN
Coating finishAlTiN
Coating processPVD
Corner radius0.0080
Cutting height0.1580
Cutting width0.1200
Full radiusNo
Included angle degree90
Insert handNeutral
Insert materialCarbide
Insert size0305
Insert styleG
Manufacturer gradeKCU25
Material gradeC2; C6
Maximum depth of cut0.1380
Maximum depth of cut range0.1000 to 0.1500
Measurement typeMetric
Multi use toolYes
Overall length0.7874
