Kennametal

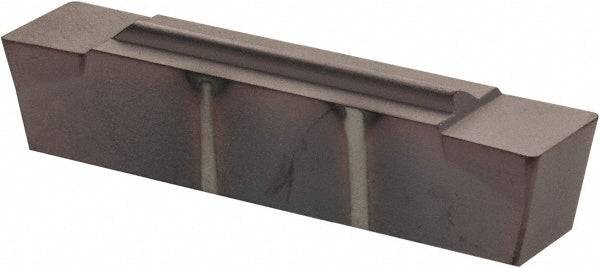

Carbide Insert, Grade KCU25, AlTiN - Kennametal 4114315
MFR# 4114315Cat# A4G0505M05U04BSeries A4
$39.28List $47.94
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU25
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 4114315 is a carbide indexable insert, grade KCU25, AlTiN coated.
Specifications
Chip breakerB
Coating finishAlTiN
Coating processPVD
Corner radius0.0157
Cutting height0.2270
Cutting width0.1988
Full radiusNo
Included angle degree90
Insert handNeutral
Insert materialCarbide
Insert size0505
Insert styleG
Manufacturers catalog numberA4G0505M05U04B
Manufacturer gradeKCU25
Material gradeC2; C6
Maximum depth of cut0.1654
Maximum depth of cut range0.1500 to 0.2000
Measurement typeMetric
Multi use toolYes
Overall length0.9843
