Kennametal
Carbide Insert, Grade KCU25, AlTiN - Kennametal 4114318
MFR# 4114318Series A4
$39.28List $47.94
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU25
MaterialCarbide
CoatingAlTiN
Description

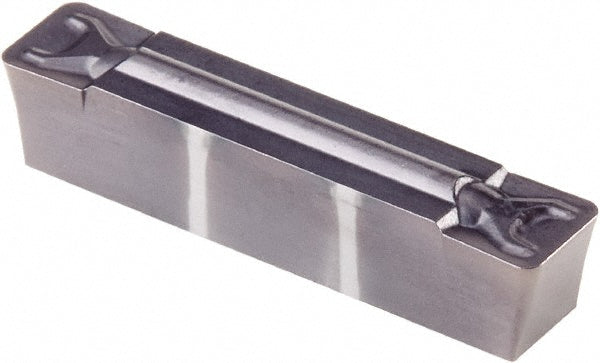

The Kennametal 4114318 is a carbide indexable insert, grade KCU25, AlTiN coated.
Specifications
Chip breakerGMN
Coating finishAlTiN
Coating processPVD
Corner radius0.0312
Cutting height0.2250
Cutting width0.1990
Full radiusNo
Included angle degree90
Insert handNeutral
Insert materialCarbide
Insert size0505
Insert styleG
Manufacturer gradeKCU25
Material gradeC2; C6
Maximum depth of cut0.1650
Maximum depth of cut range0.1500 to 0.2000
Measurement typeMetric
Multi use toolYes
Overall length0.9843
