Kennametal
Carbide Insert, Grade KCU25, AlTiN - Kennametal 4114323
MFR# 4114323Cat# A4G0605M06U04GMNSeries A4
$52.32List $62.76
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 10 — minimum order 10
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU25
MaterialCarbide
CoatingAlTiN
Description

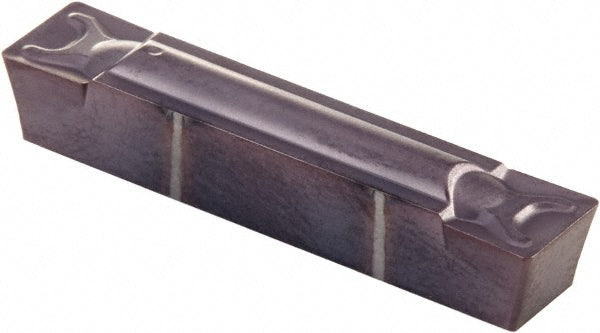

The Kennametal 4114323 is a carbide indexable insert, grade KCU25, AlTiN coated.
Specifications
Chip breakerGMN
Coating finishAlTiN
Coating processPVD
Corner radius0.0157
Cutting height0.2250
Cutting width0.2382
Full radiusNo
Included angle degree90
Insert handNeutral
Insert materialCarbide
Insert size0605
Insert styleG
Manufacturers catalog numberA4G0605M06U04GMN
Manufacturer gradeKCU25
Material gradeC2; C6
Maximum depth of cut0.1929
Maximum depth of cut range0.1500 to 0.2000
Measurement typeMetric
Multi use toolYes
Overall length1.181
