Kennametal
Carbide Insert, Grade KCU25, AlTiN - Kennametal 4114328
MFR# 4114328Cat# A4G0800M08P08GMPSeries A4
$63.14List $77.08
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU25
MaterialCarbide
CoatingAlTiN
Description

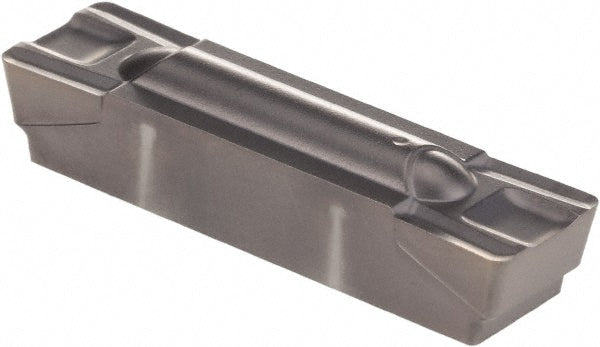

The Kennametal 4114328 is a carbide indexable insert, grade KCU25, AlTiN coated.
Specifications
Chip breakerGMP
Coating finishAlTiN
Coating processPVD
Corner radius0.0312
Cutting height0.2638
Cutting width0.3150
Full radiusNo
Included angle degree90
Insert handNeutral
Insert materialCarbide
Insert seat size8
Insert size0800
Insert styleG
Manufacturers catalog numberA4G0800M08P08GMP
Manufacturer gradeKCU25
Material gradeC2; C6
Maximum depth of cut0.2490
Maximum depth of cut range0.2000 to 0.3000
Measurement typeMetric
Multi use toolYes
Overall length1.181
RakePositive
