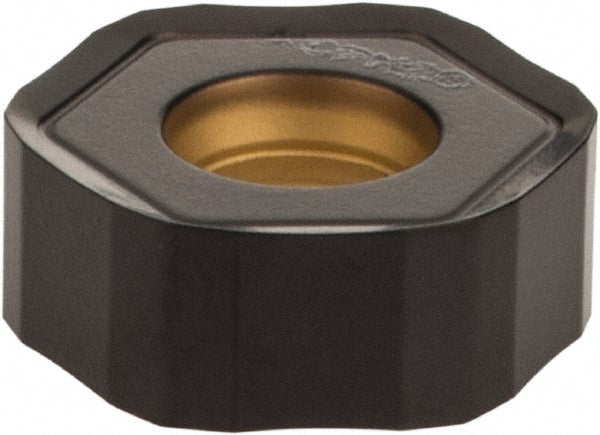

HNPJ0604ANSNGD Solid Carbide Insert, Grade KCPM20, TiN - Kennametal 4119698
MFR# 4119698ISO/ANSI# HNPJ0604ANSNGDCat# HNPJ0604ANSNGDSeries HNPJ
$33.63List $40.33
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 5 — minimum order 5
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeHexagon
GradeKCPM20
MaterialSolid Carbide
CoatingTiN
Description
The Kennametal 4119698 is a HNPJ0604ANSNGD solid carbide indexable insert, grade KCPM20, TiN coated. Suited for steel, stainless steel, cast iron, hard material.
Specifications
Ansi codeHNPJ43ANSNGD
Chip breakerGD
Coating finishTiN
Coating processMTCVD
Corner radius0.0394
Cutter series compatibilityDodeka
Cutting edge styleHoned T-Land
Hole diameter0.1969
Included angle degree120
Inscribed circle0.4724
Inscribed circle range0.4000 to 0.5000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeHexagon
Insert size4
Insert size code43
Insert styleHNPJ
Iso codeHNPJ0604ANSNGD
Length0.4724
Length range0.4500 to 0.5000
Manufacturers catalog numberHNPJ0604ANSNGD
Manufacturer gradeKCPM20
Material applicationSteel; Stainless Steel; Cast Iron; Hard Material
Maximum depth of cut0.2536
Multi use toolYes
Number of cutting edges12
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material
RakePositive
Rake angle15
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.1750
Thickness range0.1750 to 0.1850
Width0.4724
