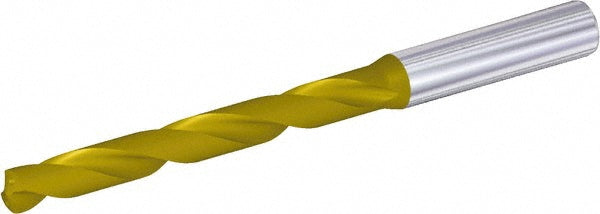

0.2323" Solid Carbide Screw Machine Drill Bit, TiN, 140° point - Kennametal 4121532

Kennametal

0.2323" Solid Carbide Screw Machine Drill Bit, TiN, 140° point - Kennametal 4121532

MFR# 4121532Series B051A

$78.79List $101.06 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingTiN

Description

The Kennametal 4121532 is a 0.2323" Solid Carbide Screw Machine drill bit with a TiN finish, 140° point. Suited for stainless steel, cast iron, high-temp alloy. Series B051A.

Specifications

Coating finishTiN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance-0.0005 to 0.0000 in; -0.012 to 0.000 mm
Drill bit size0.2323
Drill bit size range0.2000 to 0.2500
Drill length typeScrew Machine
Drill point angle140
Drill point length0.0389
Flute by diameter ratio3xD
Flute length1.1024
Flute typeRegular Spiral
Maximum drilling depth0.7874
Number of flutes2
Overall length2.5984
Point typeStandard
Primary workpiece materialStainless Steel; Cast Iron; High-Temp Alloy
Shank diameter0.2362
Shank length1.4173
Shank typeStraight
Specification designationDIN
Specification numberDIN 6537K
Spiral typeRegular
StandardsDIN 6535; DIN 6537
Tool materialSolid Carbide
Web configurationTapered
