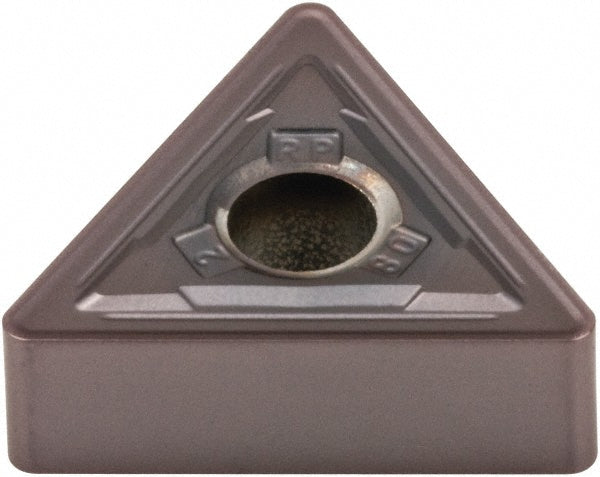

TNMG220412RP Carbide Insert, Grade KCU25, AlTiN - Kennametal 4121704

Kennametal

TNMG220412RP Carbide Insert, Grade KCU25, AlTiN - Kennametal 4121704

MFR# 4121704ISO/ANSI# TNMG220412Series KENLOC

$32.37List $38.83 Save 16%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeT - Triangle
GradeKCU25
MaterialCarbide
CoatingAlTiN

Description

The Kennametal 4121704 is a TNMG220412RP carbide indexable insert, grade KCU25, AlTiN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi insert codeTNMG433
Ansi size code433
Chip breakerRP
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishAlTiN
Coating processPVD
Corner radius in3/64
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness; Special, Super A
Hole diameter0.2031
Included angle60
Industry standard numberTNMG433RP
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.8661
Insert materialCarbide
Insert shapeT - Triangle
Insert size code433
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG220412RP
Iso insert codeTNMG220412
Iso size code220412
Length range0.7000 - 10.0000
Manufacturers catalog number4121704
Manufacturer gradeKCU25
Material gradeC2; C6
Maximum depth of cut0.2884
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Rake angle5
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width0.8661
Wiper edgeNo
