Kennametal

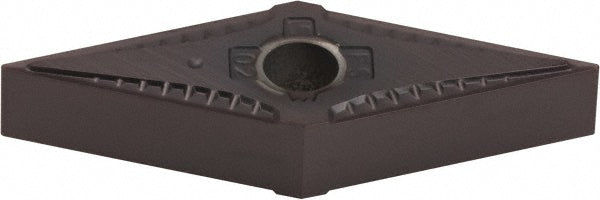

VNGG160402FS Carbide Insert, Grade KCU25, AlTiN - Kennametal 4121708
MFR# 4121708ISO/ANSI# VNGG160402Series KENLOC
$33.36List $40.72
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradeKCU25
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 4121708 is a VNGG160402FS carbide indexable insert, grade KCU25, AlTiN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi insert codeVNGG3305
Ansi size code3305
Chip breakerFS
Chip breaker operationFinishing
Clearance codeN
Coating finishAlTiN
Coating processPVD
Corner radius in1/128
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness; Special, Super A
Hole diameter0.1500
Included angle35
Industry standard numberVNGG3305FS
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.3076
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code3305
Insert styleVNGG
Insert thickness in3/16
Iso codeVNGG160402FS
Iso insert codeVNGG160402
Iso size code160402
Length range0.7000 - 10.0000
Manufacturers catalog number4121708
Manufacturer gradeKCU25
Material gradeC2; C6
Maximum depth of cut0.4354
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Rake angle12
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeG
Width in3/8
Wiper edgeNo
