Kennametal

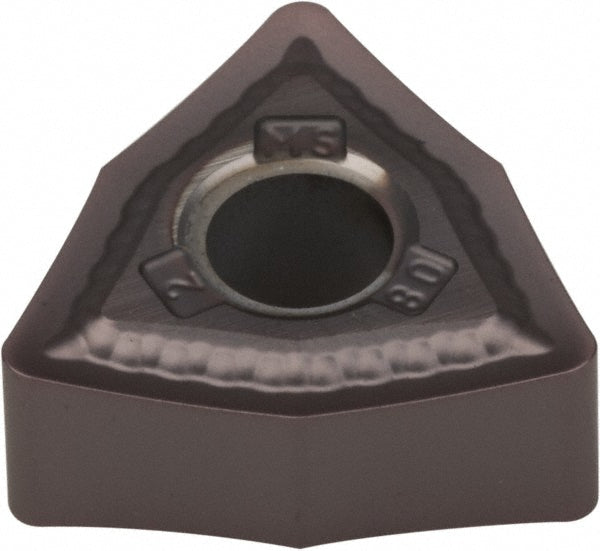

WNMG080402MS Carbide Insert, Grade KCU25, AlTiN - Kennametal 4121722
MFR# 4121722ISO/ANSI# WNMG080402Series KENLOC
$25.82List $31.52
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeW - Trigon 80-Deg
GradeKCU25
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 4121722 is a WNMG080402MS carbide indexable insert, grade KCU25, AlTiN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi insert codeWNMG4305
Ansi size code4305
Chip breakerMS
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishAlTiN
Coating processPVD
Corner radius in1/128
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness; Special, Super A
Hole diameter0.2031
Included angle80
Industry standard numberWNMG4305MS
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6840
Insert materialCarbide
Insert shapeW - Trigon 80-Deg
Insert size code4305
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG080402MS
Iso insert codeWNMG080402
Iso size code080402
Length range0.6500 - 0.7000
Manufacturers catalog number4121722
Manufacturer gradeKCU25
Material gradeC2; C6
Maximum depth of cut0.2278
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Rake angle13
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width0.6840
Wiper edgeNo
