Kennametal

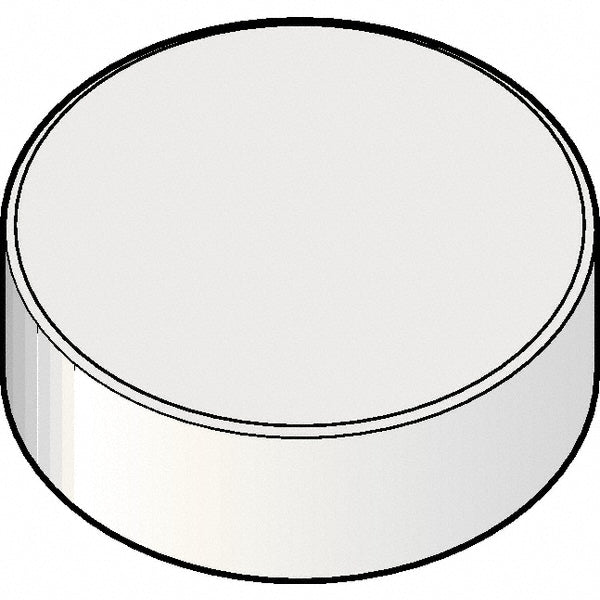

RNGN120700E Ceramic Insert, Grade KYS25, Al2O3 - Kennametal 4129536
MFR# 4129536ISO/ANSI# RNG120700Series KENDEX
$34.83List $41.78
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 5 — minimum order 5
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeR - Round
GradeKYS25
MaterialCeramic
CoatingAl2O3
Description
The Kennametal 4129536 is a RNGN120700E ceramic indexable insert, grade KYS25, Al2O3 coated. Suited for superalloys & titanium.
Specifications
Ansi insert codeRNG45
Ansi size code45
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in1/4
Cutting edge styleHoned
Full radiusYes
Grade characteristicsSpecial, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Included angle360
Industry standard numberRNG45E
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp
Insert length in1/2
Insert materialCeramic
Insert shapeR - Round
Insert size code45
Insert styleRNG
Insert thickness in5/16
Iso codeRNGN120700E
Iso insert codeRNG120700
Iso size code120700
Length range0.5000 - 0.6000
Manufacturers catalog number4129536
Manufacturer gradeKYS25
Material gradeSiAlON
Maximum depth of cut0.1665
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSuperalloys & Titanium
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeG
Width in1/2
Wiper edgeNo
