Kennametal

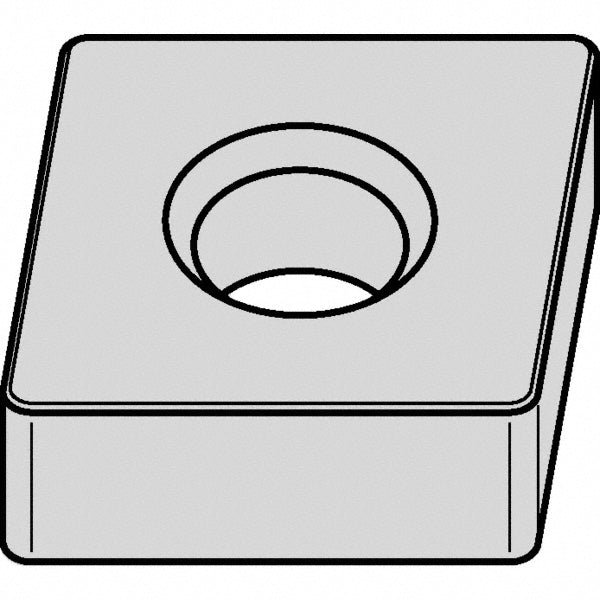

C - Diamond (Rhombic) 80-Deg 1/2" IC Ceramic Insert, Grade KYS25, Al2O3 - Kennametal 4129555
MFR# 4129555ISO/ANSI# CNGA120408Series KENLOC
$40.76List $48.88
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 5 — minimum order 5
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeKYS25
MaterialCeramic
CoatingAl2O3
Description
The Kennametal 4129555 is a ceramic indexable insert, grade KYS25, Al2O3 coated. Suited for superalloys & titanium.
Specifications
Ansi insert codeCNGA432
Ansi size code432
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in1/32
Cutting edge styleT-Land
Full radiusNo
Grade characteristicsSpecial, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.2031
Included angle80
Industry standard numberCNGA432T0420
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5077
Insert materialCeramic
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code432
Insert styleCNGA
Insert thickness in3/16
Iso insert codeCNGA120408
Iso size code120408
Length range0.5000 - 0.6000
Manufacturers catalog number4129555
Manufacturer gradeKYS25
Material gradeSiAlON
Maximum depth of cut0.1691
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSuperalloys & Titanium
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeG
Width in1/2
Wiper edgeNo
