Kennametal

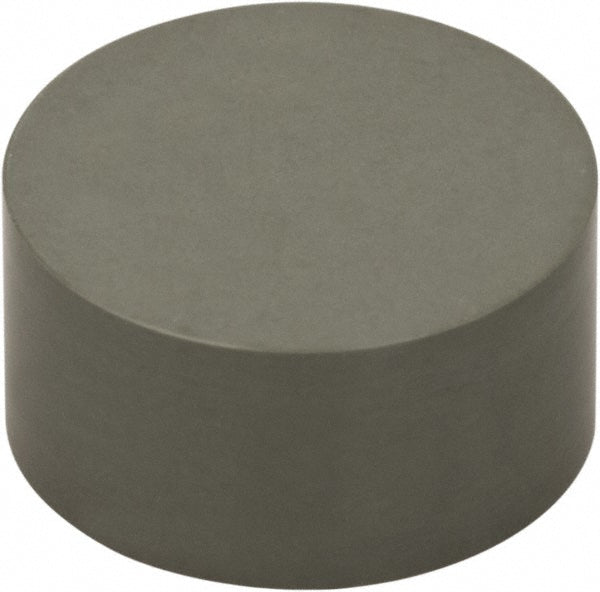

RNGN120700T01025 Ceramic Insert, Grade KYS25, Al2O3 - Kennametal 4129576
MFR# 4129576ISO/ANSI# RNG120700Series KENDEX
$30.04List $36.02
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeR - Round
GradeKYS25
MaterialCeramic
CoatingAl2O3
Description
The Kennametal 4129576 is a RNGN120700T01025 ceramic indexable insert, grade KYS25, Al2O3 coated. Suited for superalloys & titanium.
Specifications
Ansi insert codeRNG45
Ansi size code45
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in1/4
Cutting edge styleT-Land
Full radiusYes
Grade characteristicsSpecial, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Included angle360
Industry standard numberRNG45T0425
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp
Insert length in1/2
Insert materialCeramic
Insert shapeR - Round
Insert size code45
Insert styleRNG
Insert thickness in5/16
Iso codeRNGN120700T01025
Iso insert codeRNG120700
Iso size code120700
Length range0.5000 - 0.6000
Manufacturers catalog number4129576
Manufacturer gradeKYS25
Material gradeSiAlON
Maximum depth of cut0.1665
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSuperalloys & Titanium
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeG
Width in1/2
Wiper edgeNo
