Kennametal

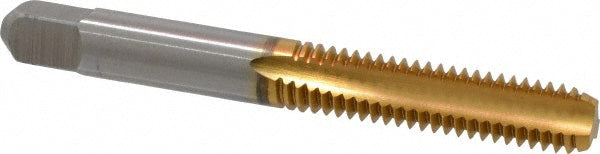

5/16-18 UNC High-Speed Steel Standard Tap, TiN - Kennametal 4130690
MFR# 4130690
$20.08List $25.76
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size5/16-18
CoatingTiN
Description
The Kennametal 4130690 is a 5/16-18 UNC High-Speed Steel Standard tap with a TiN finish. 3 flutes.
Specifications
ChamferBottoming
Class of fit3B
Coating finishTiN
Coolant throughNo
MaterialHigh-Speed Steel
Material applicationCast Iron; Stainless Steel; Steel
Number of flutes3
Overall length in2-23/32
OversizeNo
Shank diameter0.3180
Tap typeStandard
Thread directionRight Hand
Thread length in1-1/8
Thread limitH3
Thread size in5/16-18
Thread standardUNC
