Kennametal

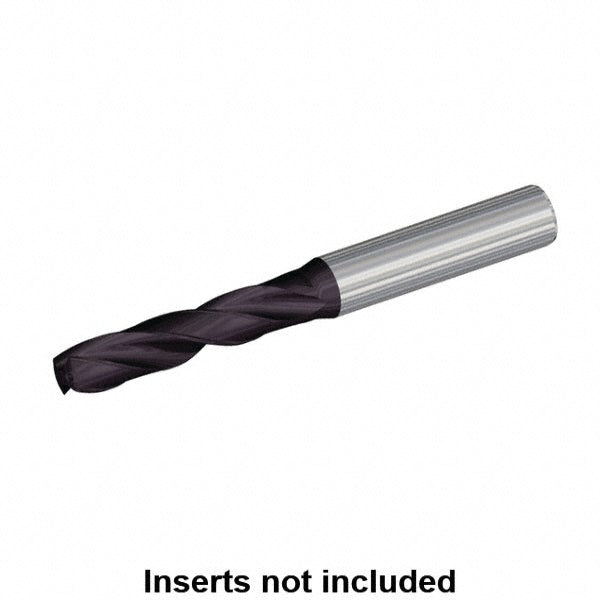

0.2421" Solid Carbide Drill Bit, TiAlN, 140° point - Kennametal 4132877
MFR# 4132877
$171.07List $219.40
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiAlN
Description
The Kennametal 4132877 is a 0.2421" Solid Carbide drill bit with a TiAlN finish, 140° point. Suited for steel, stainless steel, cast iron, aluminum & non-ferrous.
Specifications
Coating finishTiAlN
Coolant throughYes
Cutting directionRight Hand
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size0.2421
Drill bit size range0.2000 - 0.2500
Drill point angle degrees140
Drill point length (mm)1.03
Flute by diameter ratio5xD
Flute length2.0866
Flute typeRegular Spiral
Material gradeKC7315
Maximum drilling depth (mm)43.00
Number of flutes2
Overall length3.5827
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous
Shank diameter (mm)8
Shank length (mm)36
Shank typeStraight
Spiral typeRegular
Can't find your exact tool?Send us a part number — we'll cross-reference it.
Dull tools?Regrinding extends tool life and saves cost.
Alternate & equivalent tools
Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
