Kennametal

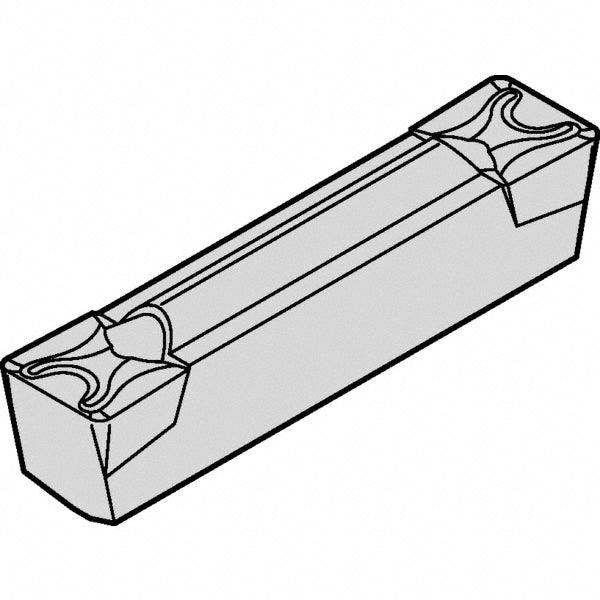

Carbide Insert, Grade KCP25, TiN - Kennametal 4137020
MFR# 4137020Cat# A4G0305M03U02GMNSeries A4
$36.13List $44.09
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCP25
MaterialCarbide
CoatingTiN
Description
The Kennametal 4137020 is a carbide indexable insert, grade KCP25, TiN coated.
Specifications
Chip breakerGMN
Coating finishTiN
Coating processCVD
Corner radius0.0080
Cutting height0.1580
Cutting width0.1200
Full radiusNo
Gage diameter0.1180
Insert handNeutral
Insert height0.1580
Insert materialCarbide
Insert size3
Insert styleA4G-U
Insert thickness0.1580
Lead angle0
Manufacturers catalog numberA4G0305M03U02GMN
Manufacturer gradeKCP25
Maximum depth of cut0.1380
Maximum depth of cut range0.1000 to 0.1500
Measurement typeMetric
Multi use toolYes
Overall length0.787
Overall width0.101
RakeNeutral
Rake angle0
