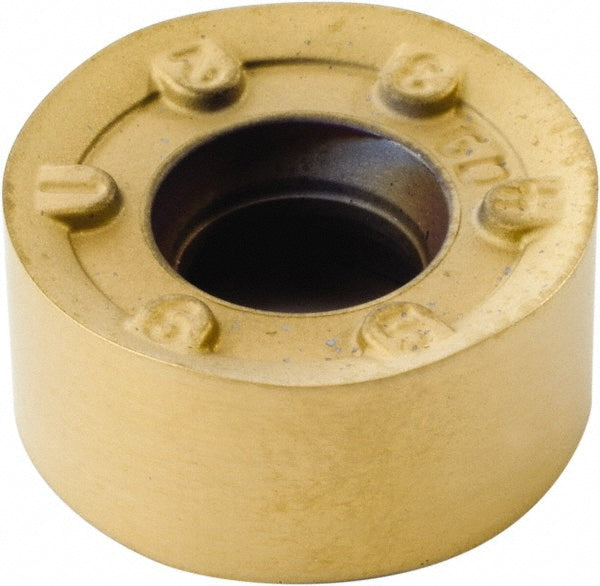

RNGJ1204M0SGD Solid Carbide Insert, Grade KC725M, TiAlN - Kennametal 4146588
MFR# 4146588ISO/ANSI# RNGJ1204M0SGDCat# RNGJ1204M0SGDSeries RNGJ
$42.98List $51.54
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 5 — minimum order 5
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRound
GradeKC725M
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 4146588 is a RNGJ1204M0SGD solid carbide indexable insert, grade KC725M, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeRNGJ1204M0SGD
Chip breakerGD
Coating finishTiAlN
Coating processPVD
Cutter series compatibilityRodeka-12
Cutting edge styleChamfered; Honed
Hole diameter0.1969
Included angle degree360
Inscribed circle0.4724
Inscribed circle range0.4000 to 0.5000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size12
Insert size code1204
Insert styleRNGJ
Iso codeRNGJ1204M0SGD
Length0.4724
Length range0.4500 to 0.5000
Manufacturers catalog numberRNGJ1204M0SGD
Manufacturer gradeKC725M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC5; C6; C7
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle15
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.1870
Thickness range0.1850 to 0.2000
Width0.4724
