Kennametal

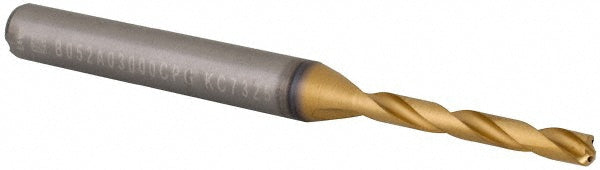

0.1181" Solid Carbide Drill Bit, TiN, 140° point - Kennametal 4149125
MFR# 4149125
$100.78List $129.07
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiN
Description
The Kennametal 4149125 is a 0.1181" Solid Carbide drill bit with a TiN finish, 140° point. Suited for steel, stainless steel, cast iron, aluminum & non-ferrous.
Specifications
Coating finishTiN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance-0.0004 to 0.0000 in
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size0.1181
Drill bit size range0.1000 - 0.1500
Drill point angle degrees140
Drill point length0.0189
Flute by diameter ratio5xD
Flute length1.1024
Flute typeRegular Spiral
Maximum drilling depth0.9055
Number of flutes2
Overall length2.5984
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous
Shank diameter0.5000
Shank length1.4173
Shank typeStraight
Specification designationDIN
Specification numberDIN 6537K
Spiral typeRegular
Web configurationTapered
