Kennametal

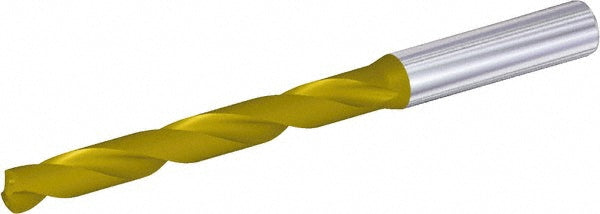

#7 Solid Carbide Drill Bit, TiN, 140° point - Kennametal 4149212
MFR# 4149212
$103.98List $133.36
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiN
Description
The Kennametal 4149212 is a #7 Solid Carbide drill bit with a TiN finish, 140° point. Suited for steel, stainless steel, cast iron, aluminum & non-ferrous.
Specifications
Coating finishTiN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance-0.0005 to 0.0000 in
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size0.2010
Drill bit size range0.2000 - 0.2500
Drill bit size wire#7
Drill point angle degrees140
Drill point length0.0334
Flute by diameter ratio5xD
Flute length1.7323
Flute typeRegular Spiral
Maximum drilling depth1.3780
Number of flutes2
Overall length3.2283
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous
Shank diameter0.1875
Shank length1.4173
Shank typeStraight
Specification designationDIN
Specification numberDIN 6537K
Spiral typeRegular
Web configurationTapered
