17/64" Solid Carbide Drill Bit, TiN, 140° point - Kennametal 4149237

Kennametal

17/64" Solid Carbide Drill Bit, TiN, 140° point - Kennametal 4149237

MFR# 4149237

$129.11List $165.36 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size17/64
Flutes2
CoatingTiN

Description

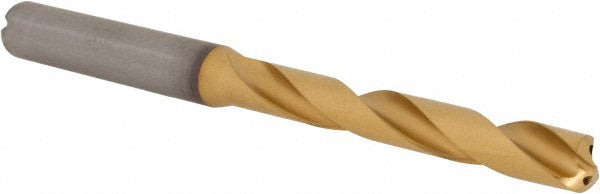

The Kennametal 4149237 is a 17/64" Solid Carbide drill bit with a TiN finish, 140° point. Suited for steel, stainless steel, cast iron, aluminum & non-ferrous.

Specifications

Coating finishTiN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance-0.0006 to 0.0000 in
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size in17/64
Drill bit size range0.2500 - 0.3000
Drill point angle degrees140
Drill point length0.0447
Flute by diameter ratio5xD
Flute length2.0866
Flute typeRegular Spiral
Maximum drilling depth1.6929
Number of flutes2
Overall length3.5827
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous
Shank diameter0.4688
Shank length1.4173
Shank typeStraight
Specification designationDIN
Specification numberDIN 6537K
Spiral typeRegular
Web configurationTapered
