Kennametal

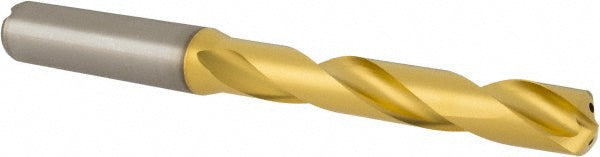

13/32" Solid Carbide Drill Bit, TiAlN, 140° point - Kennametal 4149294
MFR# 4149294
$203.42List $260.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size13/32
Flutes2
CoatingTiAlN
Description
The Kennametal 4149294 is a 13/32" Solid Carbide drill bit with a TiAlN finish, 140° point.
Specifications
Coating finishTiAlN
Coolant throughYes
Cutting directionRight Hand
Drill bit finish coatingMultilayer TiAlN
Drill bit materialSolid Carbide
Drill bit size in13/32
Drill bit size range0.4000 - 0.5000
Drill point angle degrees140
Drill point length (mm)1.80
Flute by diameter ratio5xD
Flute length (mm)71.00
Flute typeSpiral
Maximum drilling depth (mm)56.00
Number of flutes2
Overall length (mm)118.00
Point typeStandard
Shank diameter (mm)12.00
Shank length (mm)45.00
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 6537K
Spiral typeRegular
Web configurationTapered
